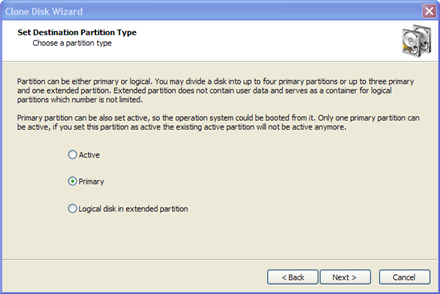

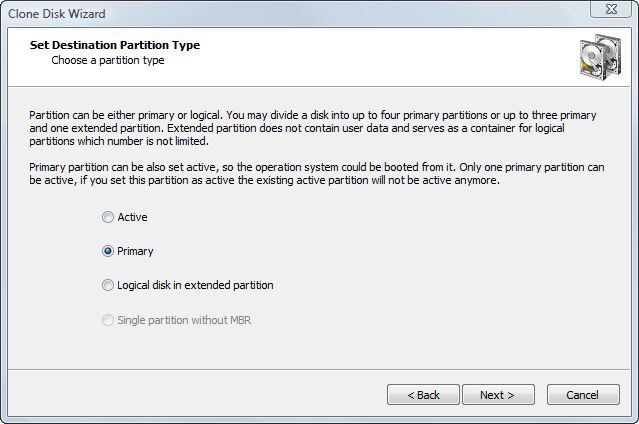

Choosing a Partition Type

Choose how the cloned partition will be used in the system. The cloned partition may be Active, Primary or Logical.

Active - A hard disk can have only one active partition. As an Active partition, it is automatically set as Primary as well. If the selected partition is a bootable partition, you must choose Active in order to allow the system to boot from it. If the target disk already has a system residing in an active partition, when you clone a partition onto a new active partition you will replace the existing active partition. All data on the formerly active partition will remain intact, but you will not be able to boot from it anymore.

Primary - A hard disk can have up to four primary partitions.

Logical - A hard disk can have an unlimited number of logical partitions. (the number of primary partitions is limited to three in this case).

Single partition without MBR – This option is available for USB flash drives only. Normally USB flash disks do not have MBR and their single partition is placed starting from sector 0. Nevertheless it is possible to create a flash drive with MBR. It might be the option when drive must be made bootable.

If the image you're restoring contains only data, it does not matter what type of partition you choose.

Note

Your type choices on this page depend on what kind of partition you have chosen to clone:

• If you selected a primary partition or unallocated space at the primary level, you can choose primary, active or logical partition. If an extended (logical) partition already exists on the disk, your choice will be limited to primary and active partitions.
• If you selected a logical partition or unallocated space on an extended partition, you can make the new partition logical only.
