Users Guide



Choosing a Backup Location

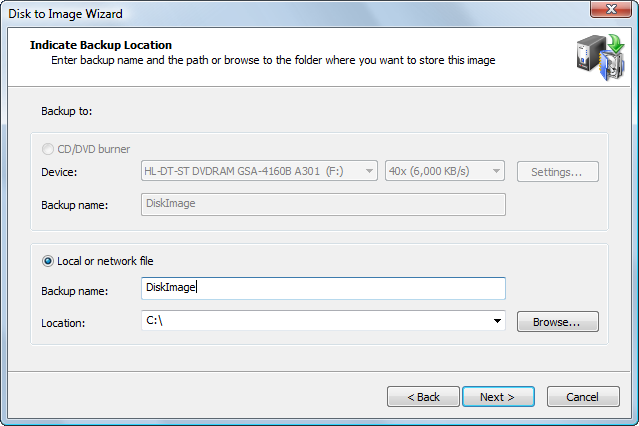

In this wizard screen, specify where to write the disk image archive.

When creating a Backup Disk Image, you have an option to select between writing an image into a file or burning it on CD/DVD (raw images can be saved to a file only).

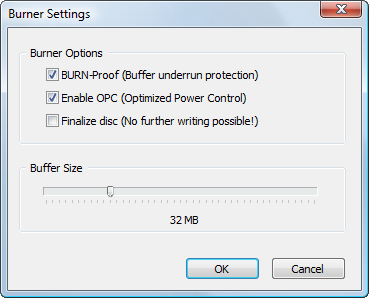

If you choose burning to CD/DVD, you need to select a burning device and enter a backup name. If you decide to store a disk image to a file, you need to provide a backup name and location. By default a folder named \Backups on a disk other than from which you are making a backup from and has the most free space is suggested.

When creating an image, all files belonging to it (.ADI or .DIM data files, .XML configuration file and optional text .LOG file) will be placed in one folder with the same name as the backup name. For example, if you choose a backup location such as C:\Backups and a backup name DiskImage, the main data file will have the name C:\Backups\DiskImage\DiskImage.adi. If you burn the disk image to CD/DVD, no extra folder is created and all files are placed in the root.

See Also

Creating a Disk Image
